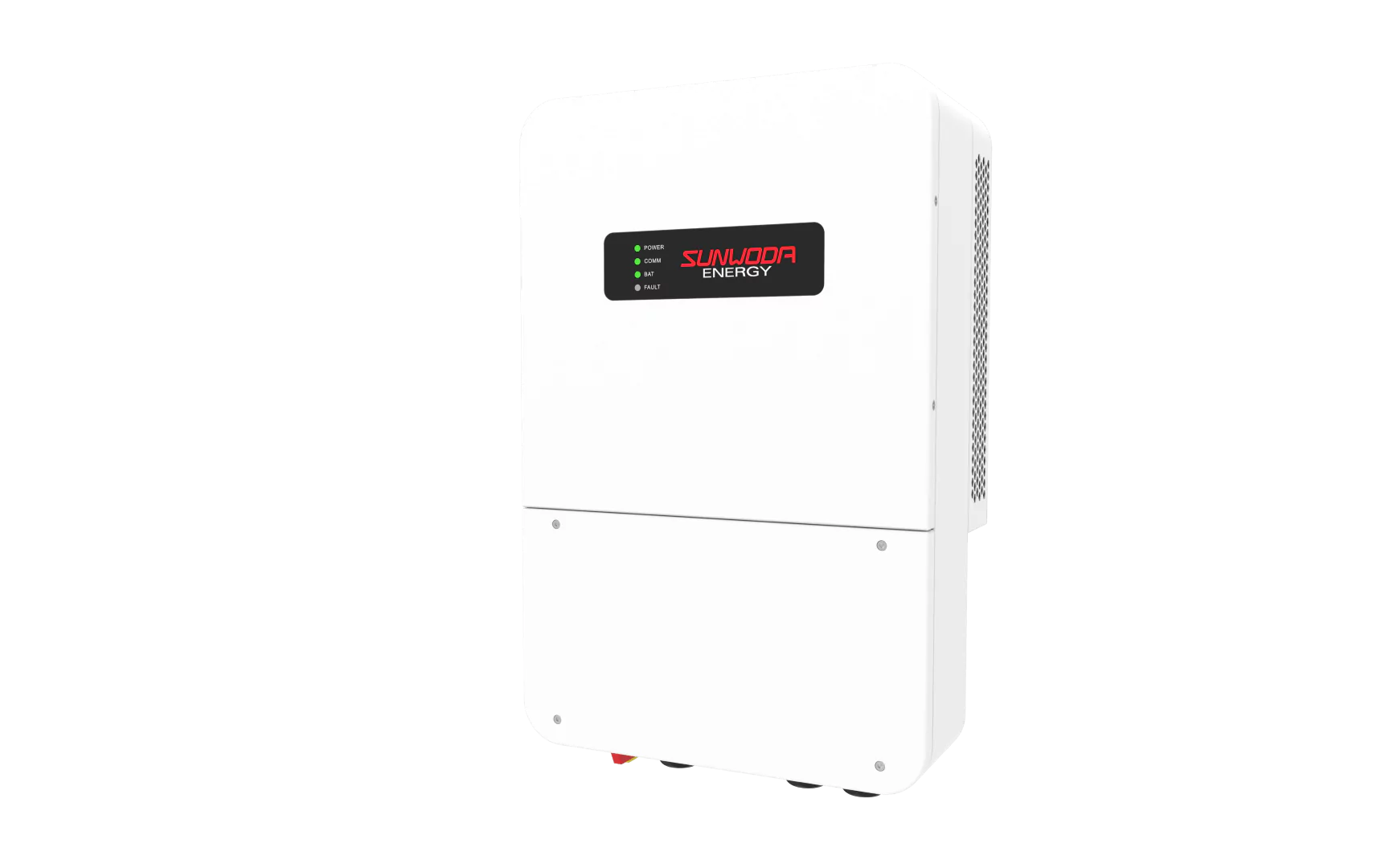

Sun Hybrid Inverter
SW5-8KWHDC-US

SUNWODA INSIDE, POWER YOUR LIFE
Prepare to Witness the Pinnacle of Solar Power Technology
Sunwoda Sun Hybrid Inverter sets a new standard for solar energy excellence, boasting an array of features that elevate its performance to unmatched heights. From enhanced safety measures to smart power management and remarkable flexibility, the Sun Hybrid Inverter is the ultimate choice for those who demand nothing but the best.

More Flexible
• Parallel installation
• UPS level switching <10ms
• Diesel generator support

Safer
• Surge protection (SPD)
• Polarity reverse & short circuit protection
• IP65
• Optional Arc-fault prevention (AFCI)
• Optional rapid shut-down (RSD)

Smarter
• CAN / RS485 / 4G
• Digital IO
• Mobile / web APP
More Powerful
• Up to 150% PV
• Up to 3 MPPT
• Powerful back-up overload
• Split-phase support (Transformerless)
SUNWODA INSIDE, POWER YOUR LIFE
Unlock the Full Potential of Your Solar Power System

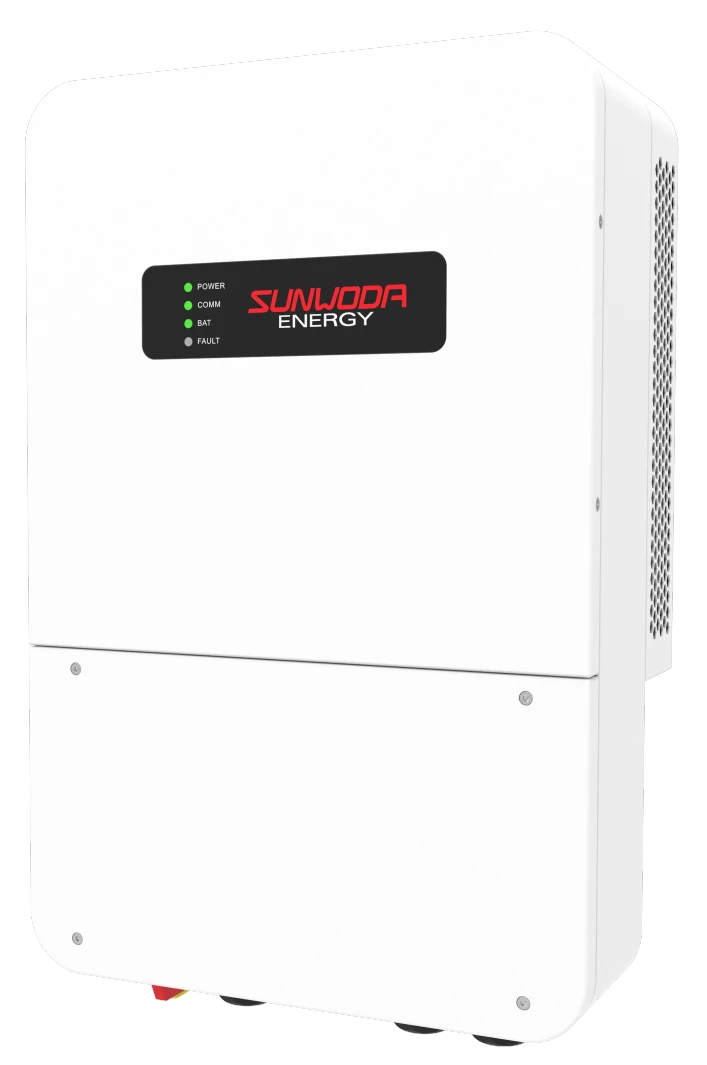

Sunwoda Sun Hybrid Inverter
Harness the power of the sun like never before with the Sun Hybrid Inverter, a cutting-edge solution designed to make your solar energy system safer, more powerful, smarter, and incredibly flexible. Packed with advanced features, this inverter takes your solar experience to new heights.
parameter351
Understand its internal structure in detail
  • Max.DC power
    7.5-12KW
  • Max.input voltage
    600V
  • MPPT voltage range/rated input voltage
    100-500V
  • Min. input voltage/initial input voltage
    100V
  • Number of independent MPPT inputs/strings per MPPT input
    2-3
  • Rated power(at 230V)
    5-8KW
  • Max. AC apparent power
    5.5-8.8KW
  • Dimension (Nominal AC voltage range, mm)
    120/240 AC
  • Max. efficiency
    97.7%
  • Dimensions(W/H/D)
    620×412×215
  • Degree of protection inverter/battery section
    IP65
  • Certificates
    UL1741/IEEE1547/RULE21/FCC 15 class B/UL1998/CSA22.2 No.107.1
Brochure/User Manual
