c&i energy storage

C&I Battery System Oasis Flex

It can apply to demand regulation and peak shifting and C & I energy storage, etc.

Home Products

MEET Scene Parameter Contact

Features

Feature Description

Strong Scalability

Simple & convenient expansion on DC sides

Smart

Real time monitoring , remote maintenance and upgrades

Modular Design

Unique modular design & flexible function configuration

Easy Installation

Easy to install and deploy with large space utilization

scene

What can we use it for

clean energy

C&I energy storage applications

c&i energy storage

Cooperate with small renewable energy power generation

c&i energy storage

User side response

c&i energy storage

Integrated energy management for C&I park

parameter357

Understand its internal structure in detail

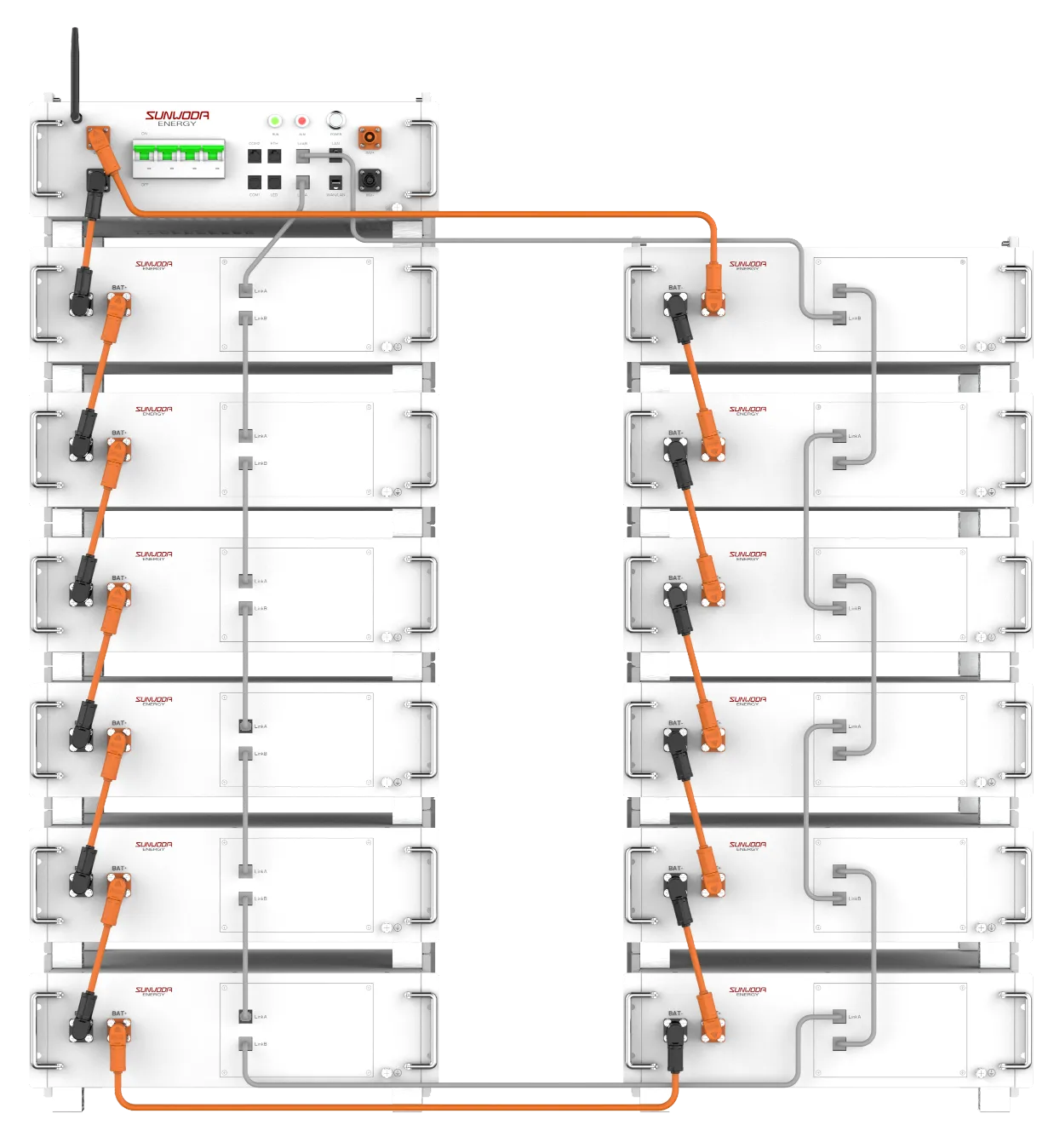

sunwoda Oasis Flex

Number of battery packs

5-12
Rated voltage

256-614.4V
Voltage range

224-681.6V
Rated energy

25-60kWh
Usable energy(90%DOD)

22.5-54kWh
Max.continuous charging/discharging current

100A/100A
Weight

248-570kg
Dimension(W*D*H)

480*410*1040mm-1180*410*1210mm
Cycle life

6000times（25℃，0.5C/0.5C，90%DOD，EOL70%）
Communication

CAN/RS485/WiFi/ETH
Expansion

Support in parallel up to 3 clusters
Enclosure protection rating

IP20
Cooling

Natural cooling
Ambient temperature

Charge:0-50℃/Discharge:–20-50℃
Humidity

10%~95%RH
Altitude

＜2000m

Brochure/User Manual

Brochure-Oasis Flex

User Manual-Oasis Flex
